Product Description:
Main Stratigraphic Distribution
1. Quaternary Alluvial Layer: The upper part consists of humus soil with a thickness ranging from 1.0 to 4.0 meters. In the lower part, there is an alluvial gravel layer measuring 45-120 meters in thickness. This layer is yellow-brown and dense, containing a small amount of cohesive soil. The gravel particles have a size of 2-25cm and are predominantly composed of quartzite, exhibiting good roundness with a gravel content exceeding 70%.
2. Bedrock Characteristics: The bedrock is limestone with a drillability level of 5-6. It has a medium thick layered structure and a dip angle ranging from 35 to 40 degrees. The rock's basic quality level is Grade IV. Karst phenomena are moderately developed, with severe dissolution of karst caves. These caves within the rock mass are commonly filled with clay.
Features:
Drilling Tool Structure:
From bottom to top, the drilling tool structure consists of the following components:
- Roller drill bit
- Variable diameter receiver
- Powder collection tube
- Stabilizer
- Drill collar
- Drill rod
- Machine mounted drill rod
Technical Parameters:
| Dimensions Of Three Cone Drill Bits | 3-26 Inches |
| Showroom Location | Hebei, China |
| Applicable Terrain | Rocks, Pebbles, Etc |
| Bearing | Composite Sealed Bearing |
| Warranty | 1 Year |
| Circulation Type | Air Or Water |
| Thread Type | 2 3/8 Reg To 7 5/8 Reg |
| Usage | Horizontal Directional Drilling, Oil And Gas Extraction |
| Processing Type | Forging |
| Applicable Industries | Construction Works, Energy & Mining |
Applications:

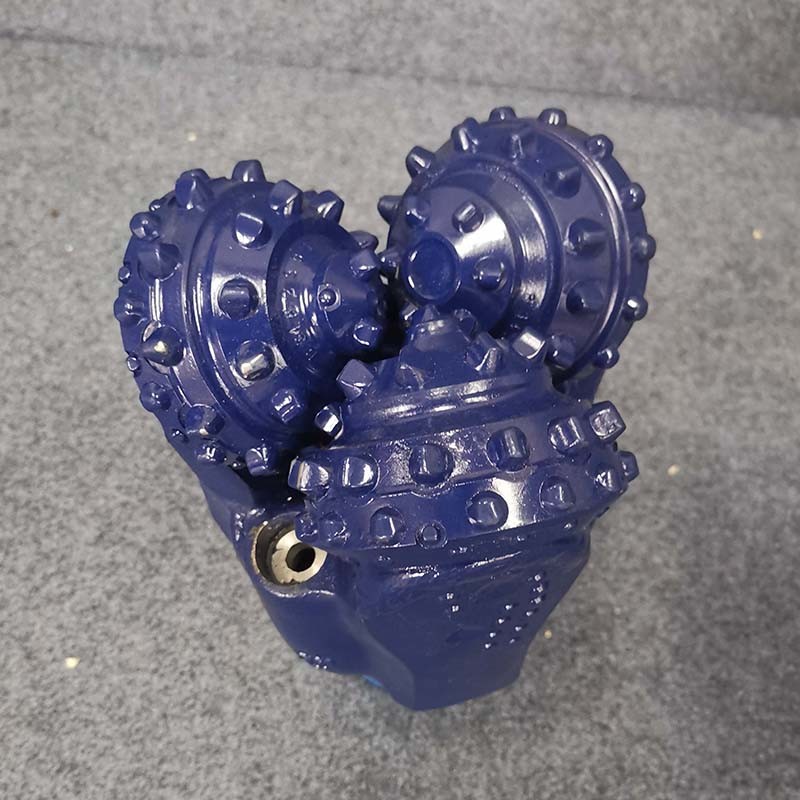

The rotating core bits of the TCI tricone drill bit make it suitable for a range of terrains, including rocks, pebbles, and more. Its versatility makes it ideal for horizontal directional drilling and oil and gas extraction operations.
The dimensions of the three cone drill bits range from 3 to 26 inches, providing options for different drilling needs. Made of durable carbide material, these rotating cone bits ensure efficient drilling performance.
Customers can enjoy tailored packaging details according to their specific requirements, with a delivery time of 15-30 work days. Payment terms include T/T and L/C, offering convenience for transactions.
Packing and Shipping:
Product Packaging:
The Tricone Drill Bits are carefully packaged in sturdy cardboard boxes to ensure safe delivery. Each drill bit is securely placed in a foam insert to prevent any damage during transit. The packaging is designed to protect the drill bits from any impacts or mishandling.
Shipping:
Once your order is confirmed, the Tricone Drill Bits will be shipped within 1-2 business days. We use reliable shipping carriers to deliver your package safely and on time. You will receive a tracking number to monitor the shipment progress. Our team ensures that the drill bits are packaged securely to withstand the shipping process.
FAQ:
Q: What is the brand name of this tricone drill bit?
A: The brand name is RuiTong Bit.
Q: What is the model number of this tricone drill bit?
A: The model number is TCI tricone drill bit.
Q: Where is this tricone drill bit manufactured?
A: It is manufactured in Hebei, China.
Q: What certifications does this tricone drill bit have?
A: It is certified with API/ISO9001.
Q: What are the payment terms for purchasing this tricone drill bit?
A: The payment terms are T/T and L/C.
